EW-432 Hall Effect ICs (Latch)

01/11/2021

EW-432  Hall Effect ICs


Description

The EW432 is a latch-type Hall IC that combines an InSb high-sensitivity Hall element and a waveform shaping IC using a unique assembling technology.
The EW432 uses a high-sensitivity InSb Hall element, so it can obtain a TTL level digital signal with good duty ratio over a wide temperature range.


Applications

  • Rotation detection, position detection, open / close detection, current detection, direction detection, etc.

Specifications

Part Number
EW432
Type
Latch
Power Supply Voltage (MIN.) [V]
2.2
Power Supply Voltage (TYP.) [V]
12
Power Supply Voltage (MAX.) [V]
18
Sensitivity Bop [mT]
3
Sensitivity Brp [mT]
-3
Output stage
With Pull-up-Resister
Current Consumption (TYP.) [mA]
Current Consumption (MAX.) [mA]
8
Drive System
Continuous
Other
Operating Temperature [℃]
-30 to 115
Device Package
SOT
Number of Pins
3

Product Information

Part Status
NRND
Pb Free
Yes
Halogen Free
No
MSL
Packaging
TAPE
JEDEC Standard Packaging
Not Compliant
Minimum Order Quantity [pcs.]
Replacement P/N

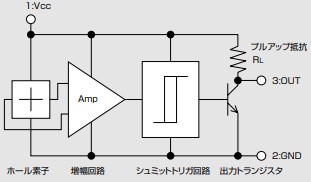

Block Diagram

ew432-block-diagram
